customized high quality optical quartz lens optical glass

  • customized high quality optical quartz lens optical glass
  • customized high quality optical quartz lens optical glass
Place of Origin CHINA
Brand Name WONDERO
Certification CE,ISO
Model Number WZ126
Minimum Order Quantity 2 PCS
Price US$ 20-100 .0/PC
Packaging Details OPTICAL PACKAGE WITH SAFE FOAM
Supply Ability 1000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Quartz Glass Shape Quartz Glass Len
Leave a Message
Product Description

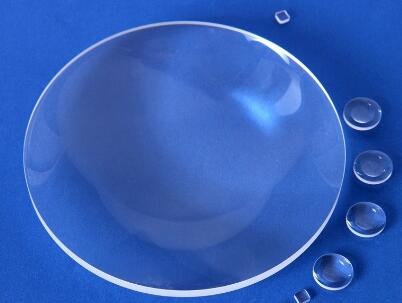

UV grade JGS1 FUSED QUARTZ GLASS OPTICAL LENS CUSTOMIZED

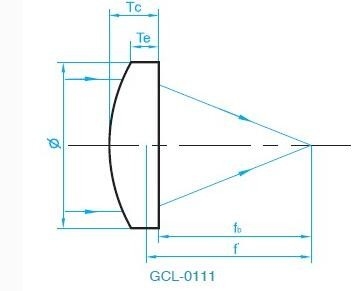

Ultraviolet-melt quartz has a high transmittance from ultraviolet to near infrared (185-2100nm), with high transmittance in the deep uv region.In addition, compared with h-k9l (n-bk7), it has better uniformity and lower thermal expansion coefficient, especially suitable for high power laser in ultraviolet to near infrared band.When the light is converging, if the absolute magnification is less than 0.2 or greater than 5, the convex lens is usually selected.When the magnification is between 0.2 and 5, a double convex lens is more suitable.In order to reduce the difference of the ball, the parallel light in the focus should be on the surface of the flat convex lens.Various coatings can be selected. Please refer to the technical data for detailed parameters.The price is the tax price of coating, please consult customer service for the price of the substrate.

Material: JGS1

Diameter tolerances: 0.0/-0.1mm

Thickness tolerance: + 0.1mm

Focal length tolerance: plus or minus 1%

Design wavelength: 587.6nm

Optical aperture: 90%

Surface quality: 40/20

Face type: lambda /4@633nm

Partial heart: no more than 3 '

Chamfering: 0.3 x 45 °
