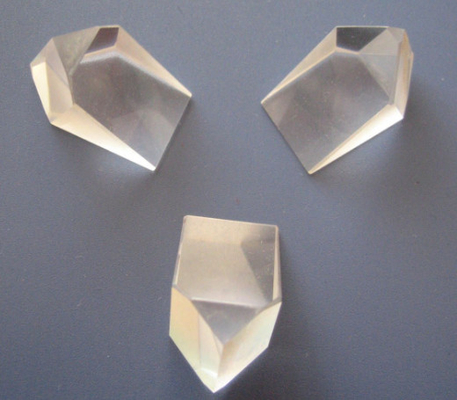

Optical high precision roof prism lens, solar rod presim lens ,high quality K9 prism, quartz glass prism lens

  • Optical high precision roof prism lens, solar rod presim lens ,high quality K9 prism, quartz glass prism lens
  • Optical high precision roof prism lens, solar rod presim lens ,high quality K9 prism, quartz glass prism lens
Place of Origin CHINA
Brand Name Wondero
Certification CE,ISO2016
Model Number cy219
Minimum Order Quantity 10 PCS
Price US$10.0-100.0/pc
Packaging Details professional packing ,carton case with foam
Delivery Time 6-10 days
Supply Ability 1000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Quartz Glass , K9 Glass,Sapphire Glass
Leave a Message
Product Description
Optical prisms lens

 roof prisms, right angle prisms, penta prisms, dove prism, half pentagonal prisms, porro prisms, Corner Cube Prisms, Beamsplitter Cube, large-size prisms, solar rod prism, X-Cubes assembly, finger print prism, DVD series prisms, agglutinate prism series, etc.
1. Materials: H-K9, H-BAK7, the kinds of high quality optical glass.
2. Processing capability:Angular Accuracy 5"；Surface Accuracy:within1/10λ；Pyramid Error:1"；　Size Accuracy:±0.02mm.
3. Application: optical apparatus, opto-electrical digital products, image equipments, fingerprint systems, medical instruments, precise digital control machinery and other optical fields, popular science educational apparatus, optical communication, etc.


Corner Cube Prisms

Corner Cube Prismor Retroreflections have the property that any ray entering will be reflected back to itself, regardless of
the entrance angle:
Specification:
Material:N-BK7 Grade A Optical Glass
Dimension tolerance:+0.0/-0.2
Beam deviation:+0.0/-0.2
Flatness:<λ/10 at reflection surface
Surface quality:60-40 scratch-dig
Clear aperture:>90%


Dove prisms

The dove prism is also called image rotator.The Prism rotates the image without chaning the direction of the input beam,<br/>
wich is parallelto hypotenuse.Rotation of the prism in relation to the subject causes double rotations of the image.Dove prisms
should be used in the parrllelbeam.
Specification:
Material:N-BK7 and the other materials
Dimension telerance:+0.0/-0.05
Deviation:±10 arc sec
Surface quality:20-10 scratch-dig
Clear aperture:>80%
