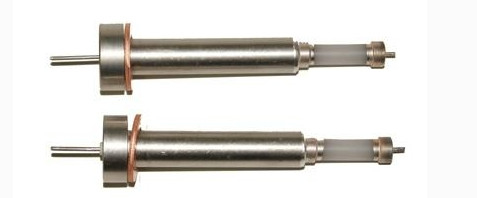

DJY2212-115 Press type water level electrode boiler using electrode DJY model

  • DJY2212-115 Press type water level electrode boiler using electrode DJY model
  • DJY2212-115 Press type water level electrode boiler using electrode DJY model
Place of Origin CHINA
Brand Name WONDERO
Certification CE,ISO
Model Number CY29
Minimum Order Quantity 10pcs / case
Price US$ 4.8-8.0/pc
Packaging Details much foam and safe case

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material High Purity 99.9% Alumina And Conduct Parts :alloy Steel Shape Type Press In
Package 10 Pcs/case Foam Packed Model Type DJY1712-97, DJY1712-115, DJY2212-115, DJY2612-115
Leave a Message
Product Description

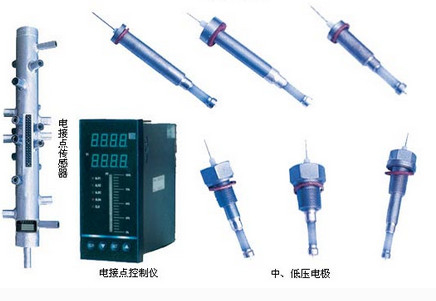

DJM model and DJY model Water Level electrode



The measuring device can be used to detect the level of boiler drum, high and low pressure heaters, deaerator steam machines and other heat exchangers. Regulators may also be used for water tanks, condensers, water tanks and other liquid level measurement

Second, the structural characteristics of

Electrode (electrically connected) models and specifications

No. Model specifications and contact form measuring cartridges
01 DJM1615-115 type M16 × 1.5 × 115 external threaded type insulation
02 DJM1615-87 type M16 × 1.5 × 87 uninsulated
03 DJM1615-97 type M16 * 1.5 * 97
04 DJM1815-87 type M18 × 1.5 × 87/97/115
05 DJY1712-115 type Φ17 × Φ12 × 87 push-type insulation
06 DJY1712-87 type Φ17 × Φ12 × 87 uninsulated
07 DJY2212-115 type Φ22 × Φ12 × 115 push-type insulation
Level 08 DJY2212-87 type Φ22 × Φ12 × 87 uninsulated

Third, the water level gauge electric contact electrode of the technical requirements are as follows:
Temperature: ≤540 ℃
Pressure: ≤42Mpa
Insulation resistance: ≥100MΩ
Manufacturing materials: insulating portion was 99.9% high purity alumina
Conductor portion of alloy steel
