water level contact electrode DJM1615-87 DJM1615-97 DJM1615-115 DJM1815-87 DJM1815-97

  • water level contact electrode DJM1615-87 DJM1615-97 DJM1615-115 DJM1815-87 DJM1815-97
  • water level contact electrode DJM1615-87 DJM1615-97 DJM1615-115 DJM1815-87 DJM1815-97
Place of Origin CHINA
Brand Name WONDERO
Certification CE
Model Number DJM modle
Minimum Order Quantity 2 pcs
Price US$ 4.9-8.0/PC

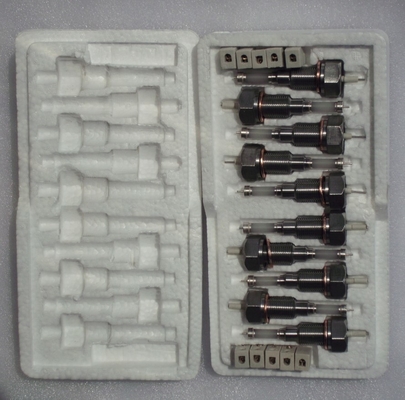

Packaging Details Safe package carton case with foam
Delivery Time 6 days
Payment Terms T/T, Western Union
Supply Ability 2000pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Forming Screw Thread Forming Name Water Level Electrode
Model DJM Model Specification DJM1615-87,DJM1615-97,DJM1615-115,DJM1815-87,DJM1815-97,DJM2015-87
Size DJM1615-115
Leave a Message
Product Description

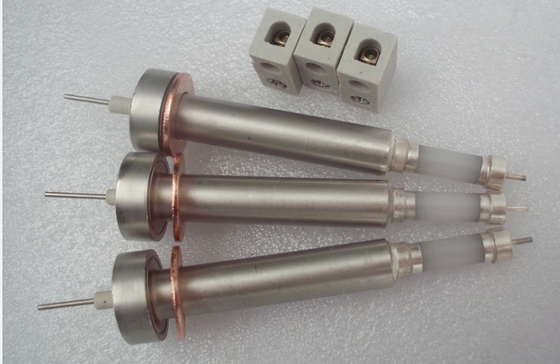

DJM model and DJY model  Water Level electrode



 Electrode (electrically connected) models and specifications

No. Model specifications and contact form measuring cartridges
01 DJM1615-115 type M16 × 1.5 × 115 external threaded type insulation
02 DJM1615-87 type M16 × 1.5 × 87 uninsulated
03 DJM1615-97 type M16 * 1.5 * 97
04 DJM1815-87 type M18 × 1.5 × 87/97/115
05 DJY1712-115 type Φ17 × Φ12 × 87 push-type insulation
06 DJY1712-87 type Φ17 × Φ12 × 87 uninsulated
07 DJY2212-115 type Φ22 × Φ12 × 115 push-type insulation
Level 08 DJY2212-87 type Φ22 × Φ12 × 87 uninsulated

Third, the water level gauge electric contact electrode of the technical requirements are as follows:
Temperature: ≤540 ℃
Pressure: ≤42Mpa
Insulation resistance: ≥100MΩ
Manufacturing materials: insulating portion was 99.9% high purity alumina
Conductor portion of alloy steel

water level contact electrode DJM1615-87 DJM1615-97 DJM1615-115 DJM1815-87 DJM1815-97 0
