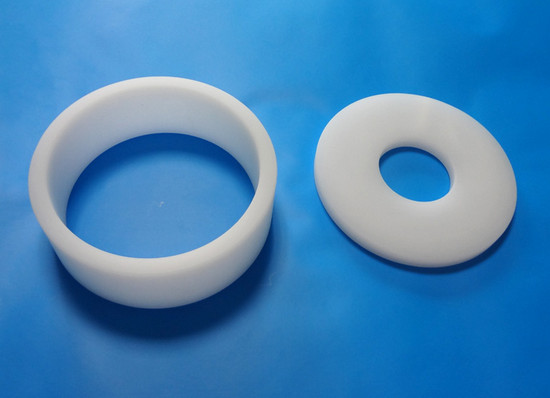

opaque plate quartz fused silica circular transparent quartz glass flange annulus

  • opaque plate quartz fused silica circular transparent quartz glass flange annulus
  • opaque plate quartz fused silica circular transparent quartz glass flange annulus
Place of Origin China
Brand Name WZ
Certification CE
Model Number CY09
Minimum Order Quantity 2 pcs
Price US$12.0-60.0/pc
Packaging Details carton case with foam
Delivery Time 6 days
Payment Terms t/t,WESTERN UNION
Supply Ability 4000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Milky Quartz Glass Ring Flange Material Fused Quartz Or Silica Glass
Leave a Message
Product Description

opaque silica quartz disc


1. high purity >99.9%
2. high transmission
3. high temperature resistant.

 Polished opaque quartz Glass Plate

opaque silica quartz disc

Product Description

High Temperature Clear Quartz Glass Plate

Chemical composition (unit:ppm)

Al Fe K Na Li Ca Mg Cu Mn Pb B Ti
20 1.0 3.5 3.5 1.0 2.0 0.5 0.3 0.5 <0.01 <0.2 2.0

Physical Properties:

Density 20°CKg X m-3(X 103) 2.2
Coefficient of expansion 25-300°C°C-1(X 10-6) 0.56
Softening point(°C) 1710
Annealing point(°C) 1230
Strain point(°C) 1140
Youngs modulus(Pa) 7.5X105


1. Material properties
High Corrosion Resistance
Broad Transmission Spectrum
Low Thermal Expansion Coefficient
Both side polished
Can work long time with 1100° C
2. Use:
Wieldy used in medical, electronic instrument, scientific research, optical industry etc.
3. Shape:
round, square, rectangular and various shapes are available.

Size and thickness:
Square type
100mmx100mmx(thickness 1mm-30mm)
150mmx150mmx(thickness 1mm-30mm)
200mmx200mmx(thickness 1mm-30mm)
200mmx400mmx(thickness 1mm-30mm)
300mmx300mmx(thickness 1mm-30mm)
400mmx400mmx(thickness 1mm-30mm)
Circular shape
Diameter 50mmx(thickness 1mm-30mm )
Diameter 100mmx(thickness 1mm-30mm )
Diameter 150mmx(thickness 1mm-30mm )
Diameter 198mmx(thickness 1mm-30mm )
Besides above size ,other can be made according to customers’detailed requirements.
