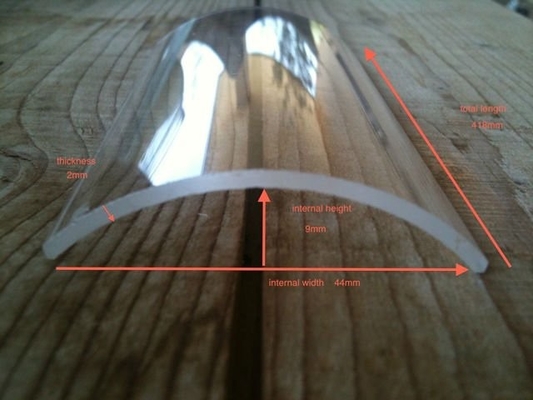

high quality UV JGS2 quartz glass window transparent quartz disc and Curved quartz plate

  • high quality UV JGS2 quartz glass window transparent quartz disc and Curved quartz plate
  • high quality UV JGS2 quartz glass window transparent quartz disc and Curved quartz plate
  • high quality UV JGS2 quartz glass window transparent quartz disc and Curved quartz plate
Place of Origin China
Brand Name WZ
Certification CE
Model Number CY09
Minimum Order Quantity 10 pcs
Price US$6.0-100.0/pc
Packaging Details carton case with foam
Delivery Time 6 -10 days
Payment Terms T/T, Western Union
Supply Ability 4000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Purity Fused Silica Quartz Color Transparent Clear
Application UV Flame Probe ,semiconductor,testing And More
Highlight

quartz glass disc

,

silica glass disc

,

round quartz plate
Leave a Message
Product Description

JGS2 optical quartz glass disc
1. high purity >99.9%
2. high transmission
3. high temperature resistant.

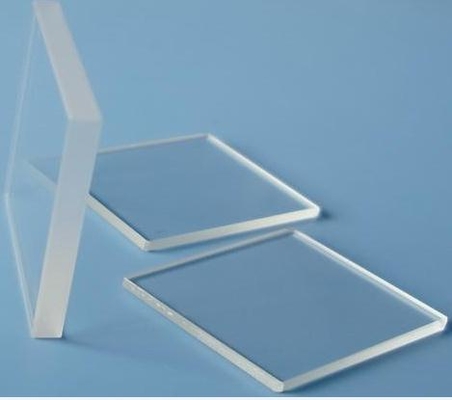

High Temperature Resistant Clear and Polished Quartz Glass Plate

clear fused silica quartz disc
silica quartz price
Product Description

High Temperature Clear Quartz Glass Plate

Chemical composition (unit:ppm)

Al Fe K Na Li Ca Mg Cu Mn Pb B Ti
20 1.0 3.5 3.5 1.0 2.0 0.5 0.3 0.5 <0.01 <0.2 2.0

Physical Properties:

Density 20°CKg X m-3(X 103) 2.2
Coefficient of expansion 25-300°C°C-1(X 10-6) 0.56
Softening point(°C) 1710
Annealing point(°C) 1230
Strain point(°C) 1140
Youngs modulus(Pa) 7.5X105



1. Material properties

High Corrosion Resistance

Broad Transmission Spectrum

Low Thermal Expansion Coefficient

Both side polished

Can work long time with 1100° C

2. Use:

Wieldy used in medical, electronic instrument, scientific research, optical industry etc.

3. Shape:

round, square, rectangular and various shapes are available.



Size and thickness:

Square type
100mmx100mmx(thickness 1mm-30mm)
150mmx150mmx(thickness 1mm-30mm)
200mmx200mmx(thickness 1mm-30mm)
200mmx400mmx(thickness 1mm-30mm)
300mmx300mmx(thickness 1mm-30mm)
400mmx400mmx(thickness 1mm-30mm)
Circular shape
Diameter 50mmx(thickness 1mm-30mm )
Diameter 100mmx(thickness 1mm-30mm )
Diameter 150mmx(thickness 1mm-30mm )
Diameter 198mmx(thickness 1mm-30mm )
Besides above size ,other can be made according to customers’detailed requirements.
