high quality curved quartz plate or borosilicate sight glass flex disc quartz curved sheet

  • high quality curved quartz plate or borosilicate sight glass flex disc quartz curved sheet
  • high quality curved quartz plate or borosilicate sight glass flex disc quartz curved sheet
Place of Origin china
Brand Name wz
Certification ce
Model Number cy12
Minimum Order Quantity 2 pcs
Price US$6.0-39.0/PC
Packaging Details carton case with foam and plywood crate
Delivery Time 6-8 days
Payment Terms T/T, Western Union
Supply Ability 2000 pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Transparent Quartz Glass And Borosilicate Glass Shape Curved And Other Shape
Leave a Message
Product Description

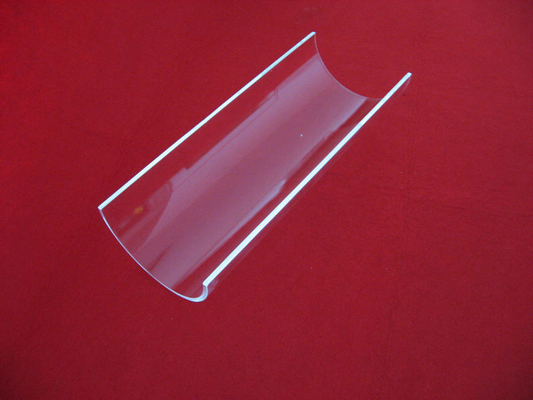

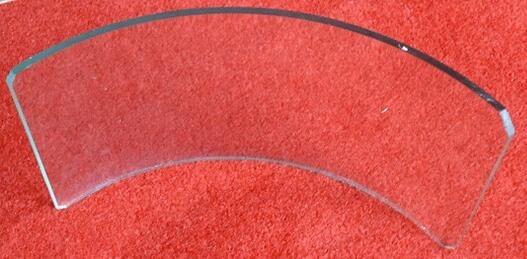

Arc shape quartz glass
glass plate for wafer substrates/ borosilicate plate for wafer substrates/ borosilicate glass plate for wafer substrates

Densityρ:

2.23±0.02g/cm3

Hardness:

>7

Tensile strength:

4.8×107Pa(N/M2)

Bulk modulus:

93×103Mpa

Modulus of rigidity:

3.1×1010Pa

Young's modulus:

63KN/mm3

Compressive strength:

1200kg/cm2

Poisson's ratio:

0.18

Thermal expansion coefficient:

(0-300℃)(3.3±0.1)x10-6K-1

Coefficient of thermal conductivity:

1.2W×(m×k) -1

Specific heat capacity:

(20-100℃)00.82kJx(kgxk)

Optical performance:



1.Light transmittance:

92%

2.The refractive index:

Nd:1.47384

3.The wavelength:

435.8nm=1.481, 479.9nm=1.4772 , 546.1nm=1.4732

Softening point:

810±10 ℃

The resistivity1gρ

250℃8.0Ω×cm

Dielectric coefficientε

4.7

Dielectric strength

5×107V/M

Dielectric loss factor

tanσ(MC20℃)≤38×10-4

Resistance to cold and hot shock

280℃

Continuous working temperature

≤550℃

Water resistance:

ISO719 HGB Level 1

Acid resistance

ISO195 HGB Level 1

Alkali resistance

ISO695 HGB Level 2


high quality curved quartz plate or borosilicate sight glass flex disc quartz curved sheet 0
