3.3 borosilicate liquid level indicator glass and tempered sight glass plate

  • 3.3 borosilicate liquid level indicator glass and tempered sight glass plate
  • 3.3 borosilicate liquid level indicator glass and tempered sight glass plate
Place of Origin china
Brand Name wz
Certification ce
Model Number cy11
Minimum Order Quantity 2 pcs
Price 8.0
Packaging Details carton case with foam and plywood crate
Delivery Time 6 days
Payment Terms t/t,western union
Supply Ability 2000 pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Sight Glass Shape Oval
Dimensions Custom Chemical Composition Borosilicate Glass
Product Name Sight Glass
Highlight

borosilicate glass plate

,

borosilicate glass disc

,

sight glass disc
Leave a Message
Product Description

3.3 borosilicate glass sight plate

borosilicate glass plate for sight glass / borosilicate plate for wafer substrates



Densityρ:

2.23±0.02g/cm3

Hardness:

>7

Tensile strength:

4.8×107Pa(N/M2)

Bulk modulus:

93×103Mpa

Modulus of rigidity:

3.1×1010Pa

Young's modulus:

63KN/mm3

Compressive strength:

1200kg/cm2

Poisson's ratio:

0.18

Thermal expansion coefficient:

(0-300℃)(3.3±0.1)x10-6K-1

Coefficient of thermal conductivity:

1.2W×(m×k) -1

Specific heat capacity:

(20-100℃)00.82kJx(kgxk)

Optical performance:



1.Light transmittance:

92%

2.The refractive index:

Nd:1.47384

3.The wavelength:

435.8nm=1.481, 479.9nm=1.4772 , 546.1nm=1.4732

Softening point:

810±10 ℃

The resistivity1gρ

250℃8.0Ω×cm

Dielectric coefficientε

4.7

Dielectric strength

5×107V/M

Dielectric loss factor

tanσ(MC20℃)≤38×10-4

Resistance to cold and hot shock

280℃

Continuous working temperature

≤550℃

Water resistance:

ISO719 HGB Level 1

Acid resistance

ISO195 HGB Level 1

Alkali resistance

ISO695 HGB Level 2

Borosilicate glass is one of transparent colorless glass, through wavelength is between 300 nm to 2500 nm, transmissivity is more than 90%. Coefficient of thermal expansion is It can acid proof and alkali , the high temperature resistant is about 450°C. If course handling , the high temperature resistant can reach 550°C or so. Apply to lighting fixture , chemical industry , electron, high temperature equipment and so on.

Borosilicate glass has excellent transmission over the visible and NIR wavelengths working from 310nm to 2700nm. The surface quality is not as high as the BK7 versions.

Borosilicate glass has excellent chemical andthermal-shockresistanceand has a maximum working temperature of 500°C so are excellent for use in high powered light source applications or an excellent choice for cold and hot mirror substrates.

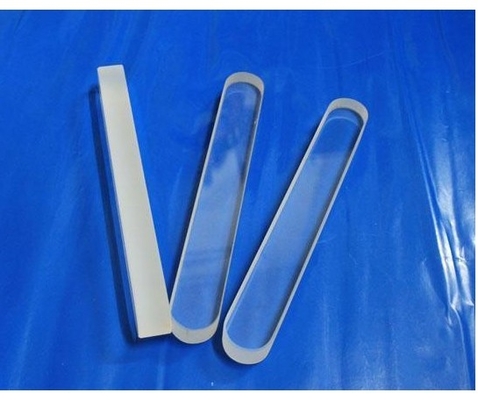

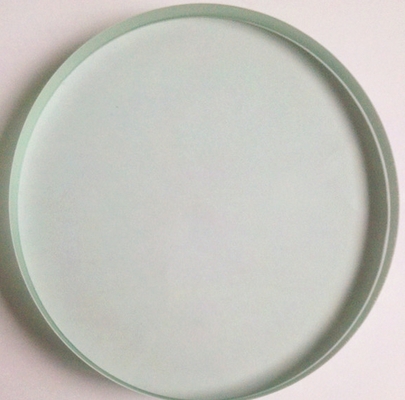

3.3 borosilicate liquid level indicator glass and tempered sight glass plate 03.3 borosilicate liquid level indicator glass and tempered sight glass plate 1
